SPIRITED 480

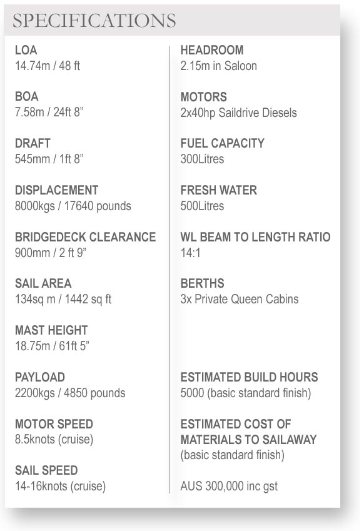

LENGTH 14.8m  |  BEAM 7.5m  |  BERTHS 3 Doubles |  USEAGE Blue-water  |  KIT OPTIONS DuFlex Balsa/Foam, Plain Foam

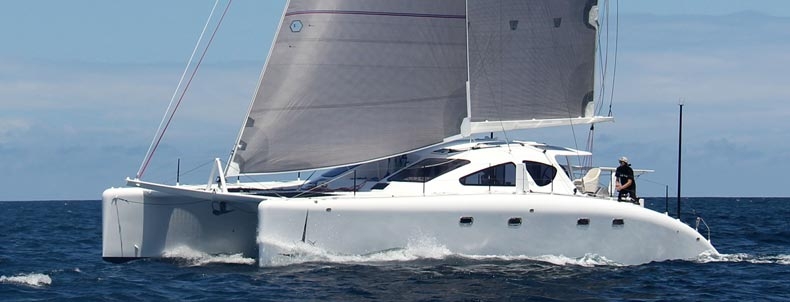

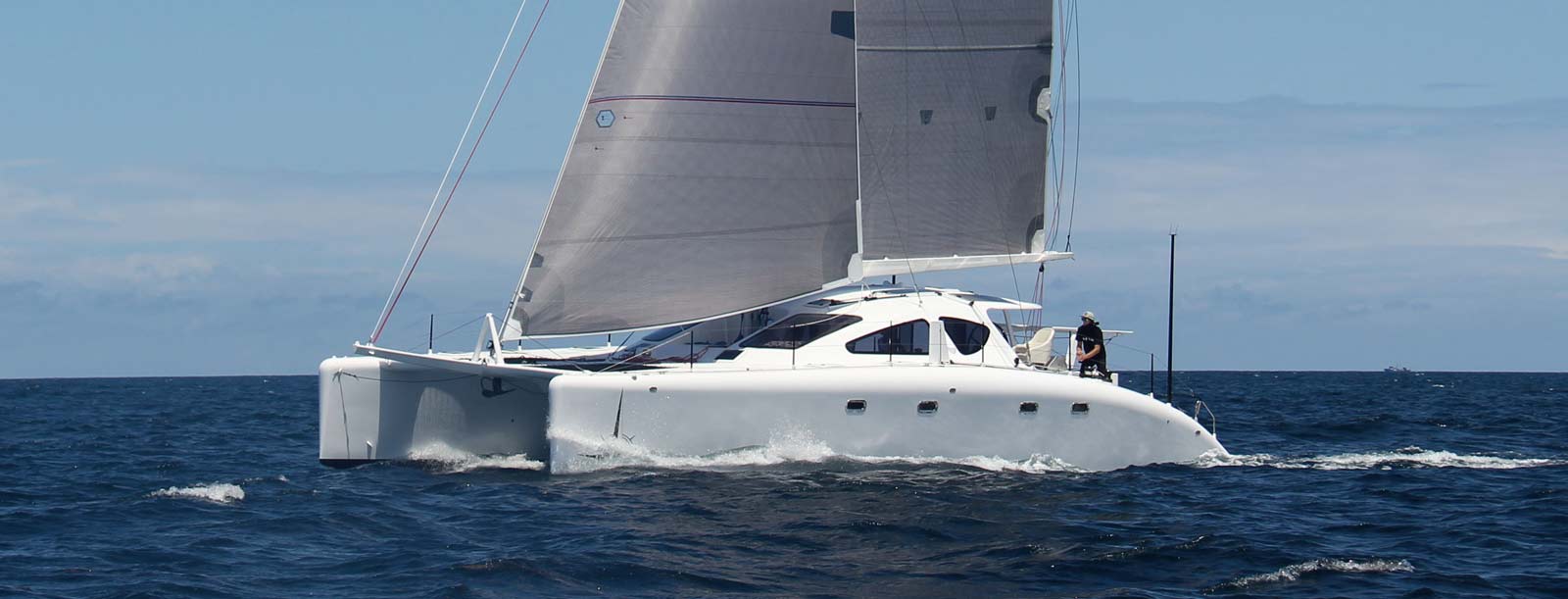

With all the attributes of the Spirited 380 but with added length and space the Spirited 480 is the next level in blue-water performance.

Designed for serious long distance cruising the Spirited 480 is perfect for sailing the world in style! Just oozing ‘wow’ factor this beauty is guaranteed to turn heads in any port. The Spirited 480 brings a new dimension to luxury living on the water with unsurpassed space to accommodate even a large party in comfort.

The Spirited 480 is ideal for family cruising where a generous payload is required for comfortable living. This design can handle those optional extras on the wish list, like a generator, air-conditioning or a dive compressor that make life aboard that much more enjoyable. The sailing performance is impressive with slender easily-driven hulls and a performance rig design. Passage speeds are exceptional and also comfortable on this generous cruising platform.

The build method has been carefully thought out as with the smaller Spirited 380 with the moulded sections fitting together with the computer-cut light weight composite panels.

The Spirited 480 is a serious offshore design but can be just as at home as a nimble round the buoys boat or for weekend trips. The lightweight materials used to build this design keep the structure light but strong and provide more scope for carrying capabilities. This enables versatility in the end use whether crossing oceans or club racing with the boat stripped down, this design can do it. The long slim hulls provide easily-driven comfortable performance.

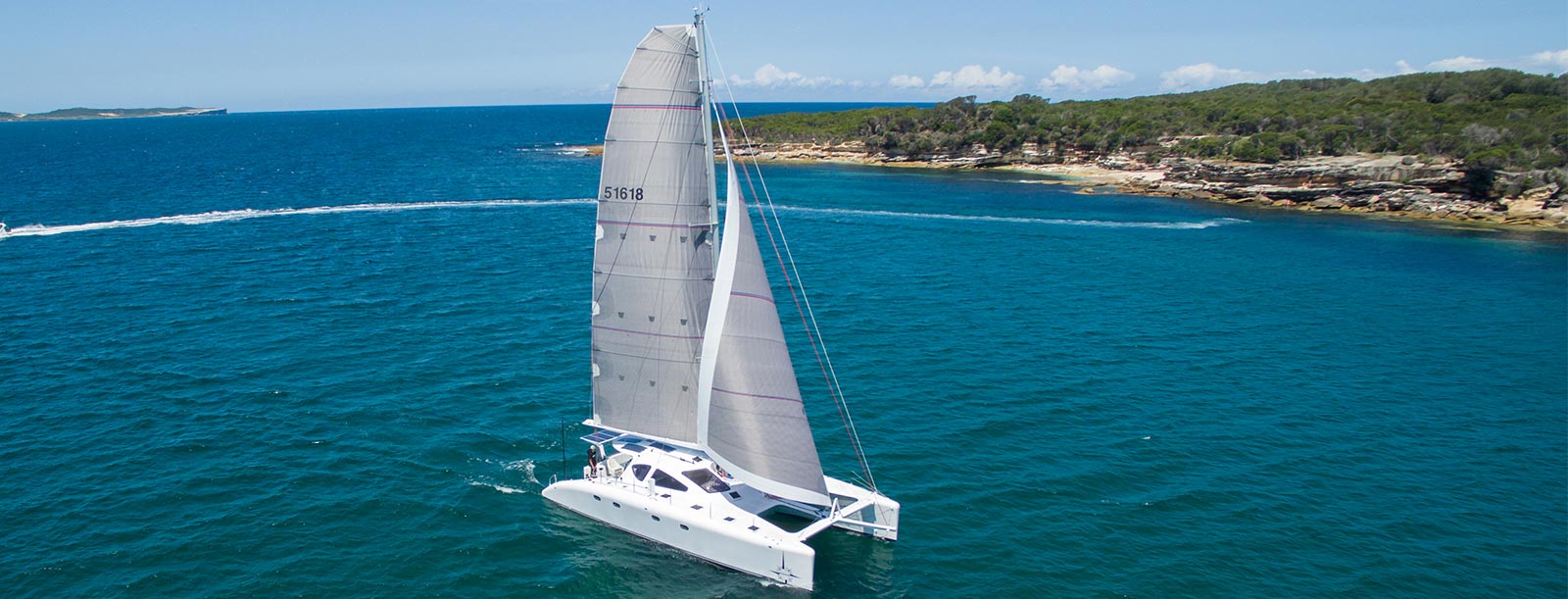

Rig The rig size on this design is moderate and is therefore more manageable for the crew. As per the Spirited 380, the sail wardrobe has a Screecher fitted close to the end of the prodder with the option of a Spinnaker flown from the end. The Genoa is then aft of this on the forestay with the option of a permanently fitted storm jib on the inner forestay. This versatile head sail design is ideal for cruising suiting almost any conditions scenario.

Boarding the Spirited 480 is via the aft steps and through the open deck level walkway into the cockpit. As with the Spirited 380 there is a large swimming platform between the steps across the back. The back end design allows excellent access to the water for recreational activities such as swimming, diving etc.

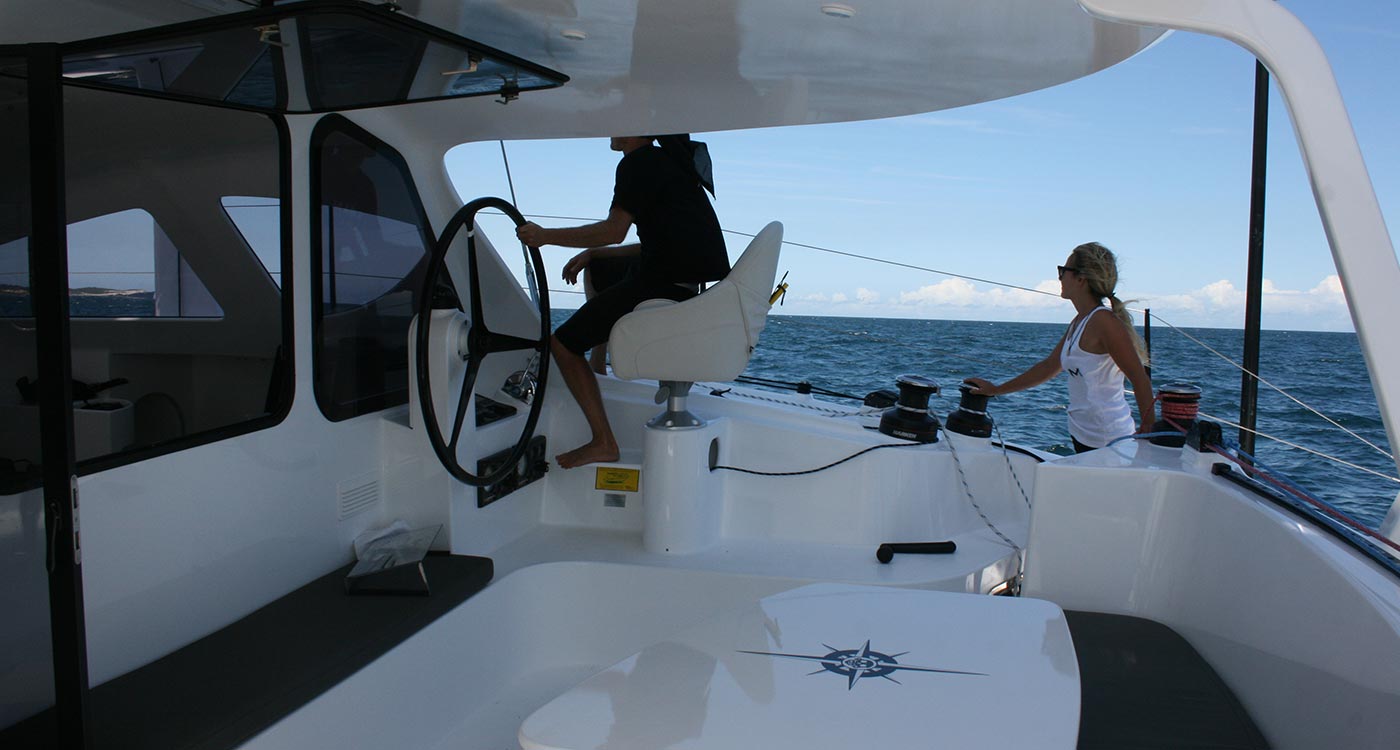

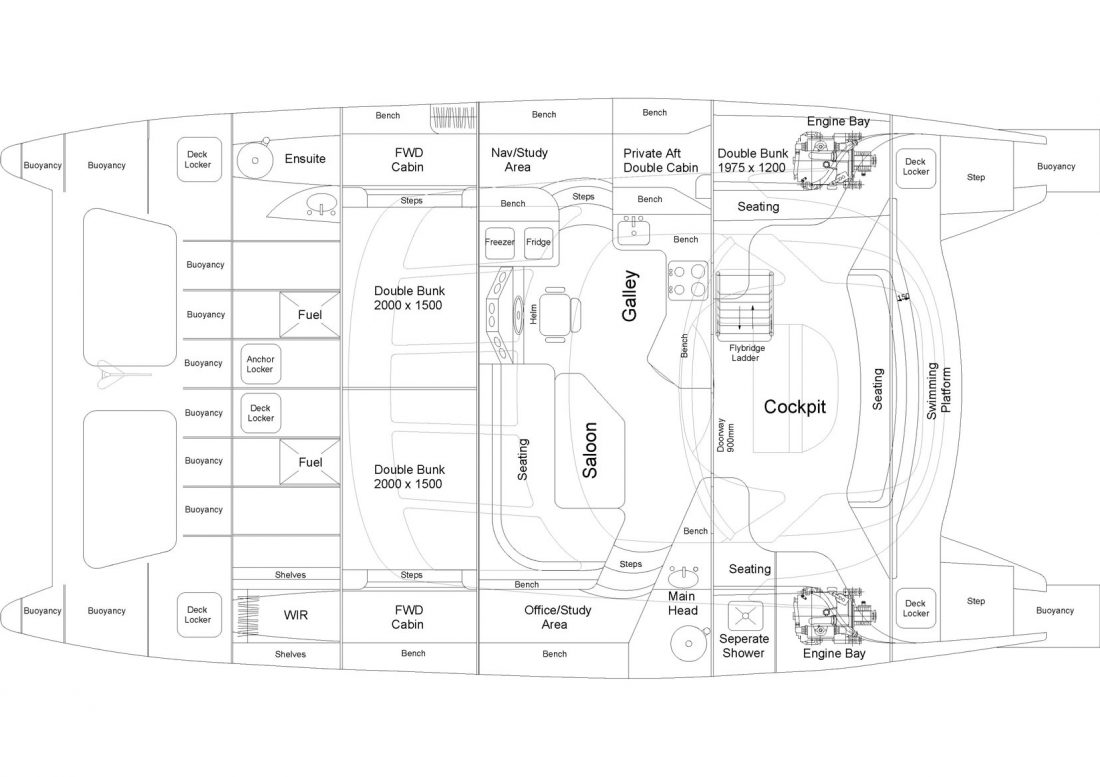

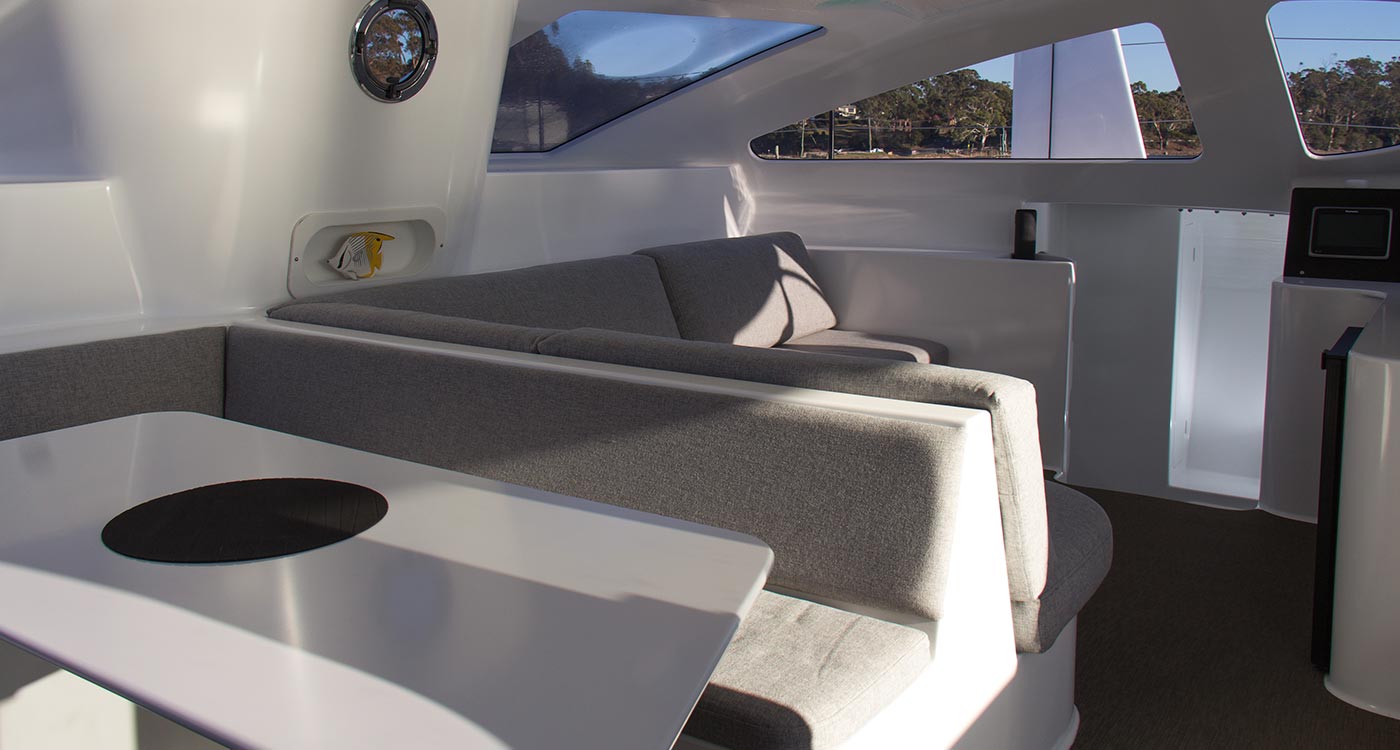

Cockpit The cockpit is large and can be set-up with a breakfast nook against the forward bulkhead if required. This bulkhead is of open design with large doors and windows creating a flow-through affect.  Inside the saloon cabin there is ample space for the galley and saloon seating. The galley is set against the aft bulkhead with generous bench and locker space. Opposite this is the spacious seating area which keeps the galley centrally positioned between the saloon and the cockpit areas.

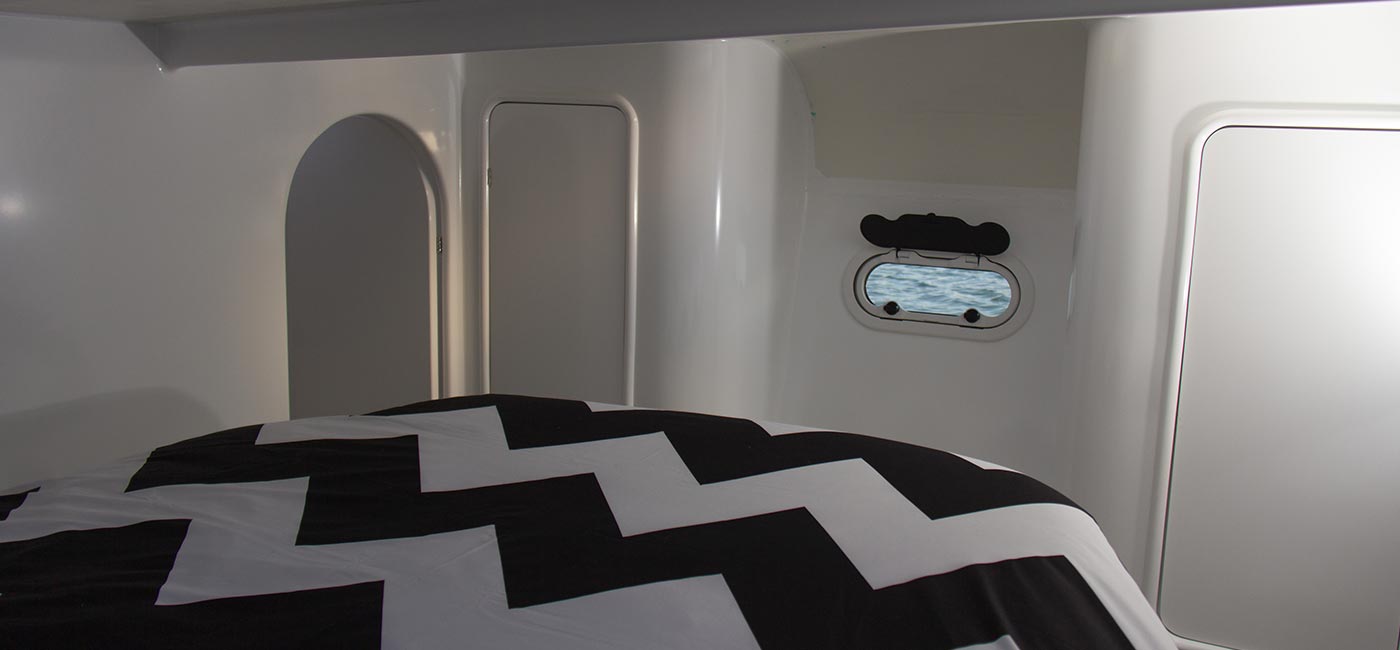

Cabins The two forward cabins can be set-up with fore and aft queen sized bunks or athwartships island bunks. The island bunks are popular because they have access steps each side and also a flat section each side of the bed for a book or cup of tea.

The options leading forward off these cabins can be either an ensuite, a walk-in-robe or a separate shower. On the standard layout there is a private double cabin aft Starboard and opposite a large sized head with separate shower.

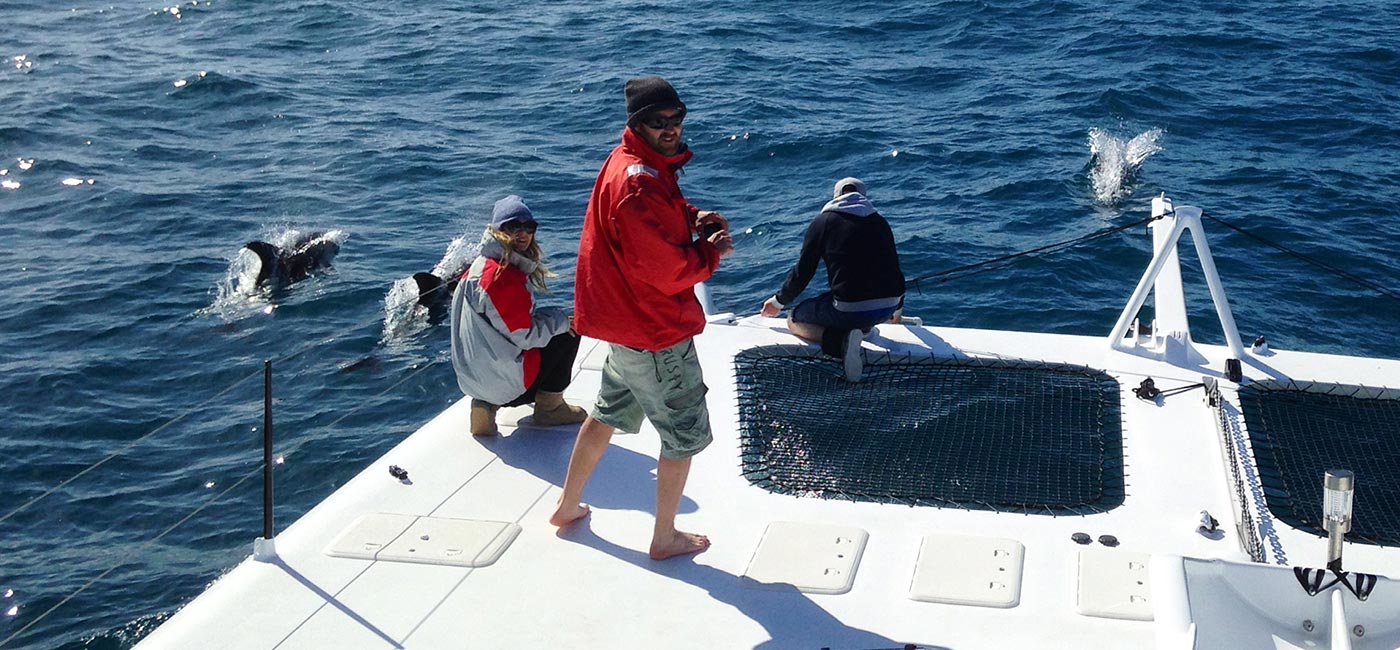

Decks On deck footing is excellent from the side decks right up to the foredeck. Inherent with the Spirited philosophy the decks are all level and clean. This flows seamlessly onto the trampolines which are also flush with the catwalk. Handling the lines at the mast is done also on a level area, safe and secure within the confines of the cabin recess.

This design has many options available, one is a fully protected single helm station set to Starboard. The stylish composite helm pod blends with the lines of the boat and has all control lines running to a single electric winch station.



Kit Packages

Kit packages are available for this design and the options can be viewed in the Spirited 480 Kit page

Construction plans only

The plans can be purchased separately and the materials can be sourced by the client at their own pace. A list of the required and recommended materials is provided.

Cad-drawn colour construction plans are supplied in an A3 sized booklet of high detail specifically suited to amateur building.

Study Plans

Study Plans are available for this design, please send a request via our Contact page.

How to Order your Spirited 480?

Purchase Order
Please complete the online contact form. Online Form

Order Confirmation
On receipt of your order form we will provide you with an order confirmation with the costs and deposit requirements.

Payment
Generally a deposit is made at order and a final payment is made prior to dispatch. Payment for the larger design range is generally made via direct deposit and these bank details are provided on your order confirmation. Payments are made in Australian dollars.

Delivery
Estimated delivery times is provided on the Order confirmation. We will contact you with a delivery date and delivery options once the kit has been ordered.

Details

Contruction Plans
Printed to order with customised cover sheets and any other design requirements to meets the clients requests.

Kits
Pre-cut to order as standard or to meet any specific customised requirements.

Components
Built to order as standard or to meet any specific customised requirements.
